1977 Toyota Chinook Electrical & Vacuum Diagrams

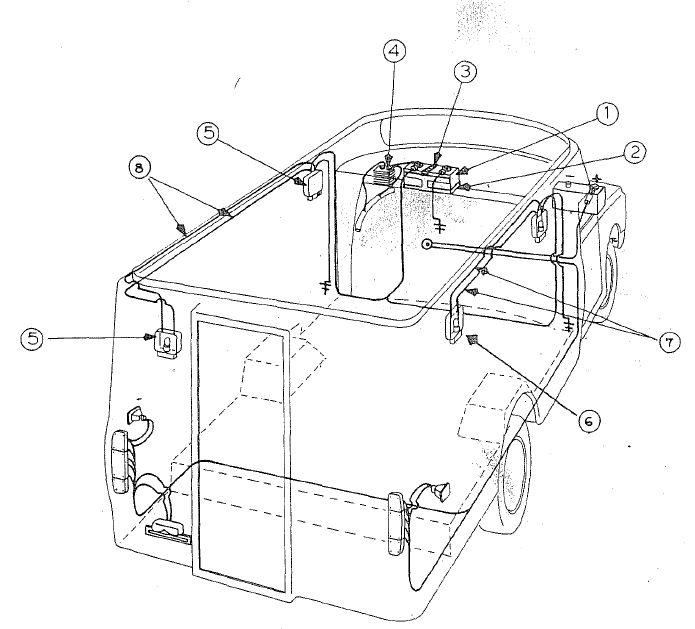

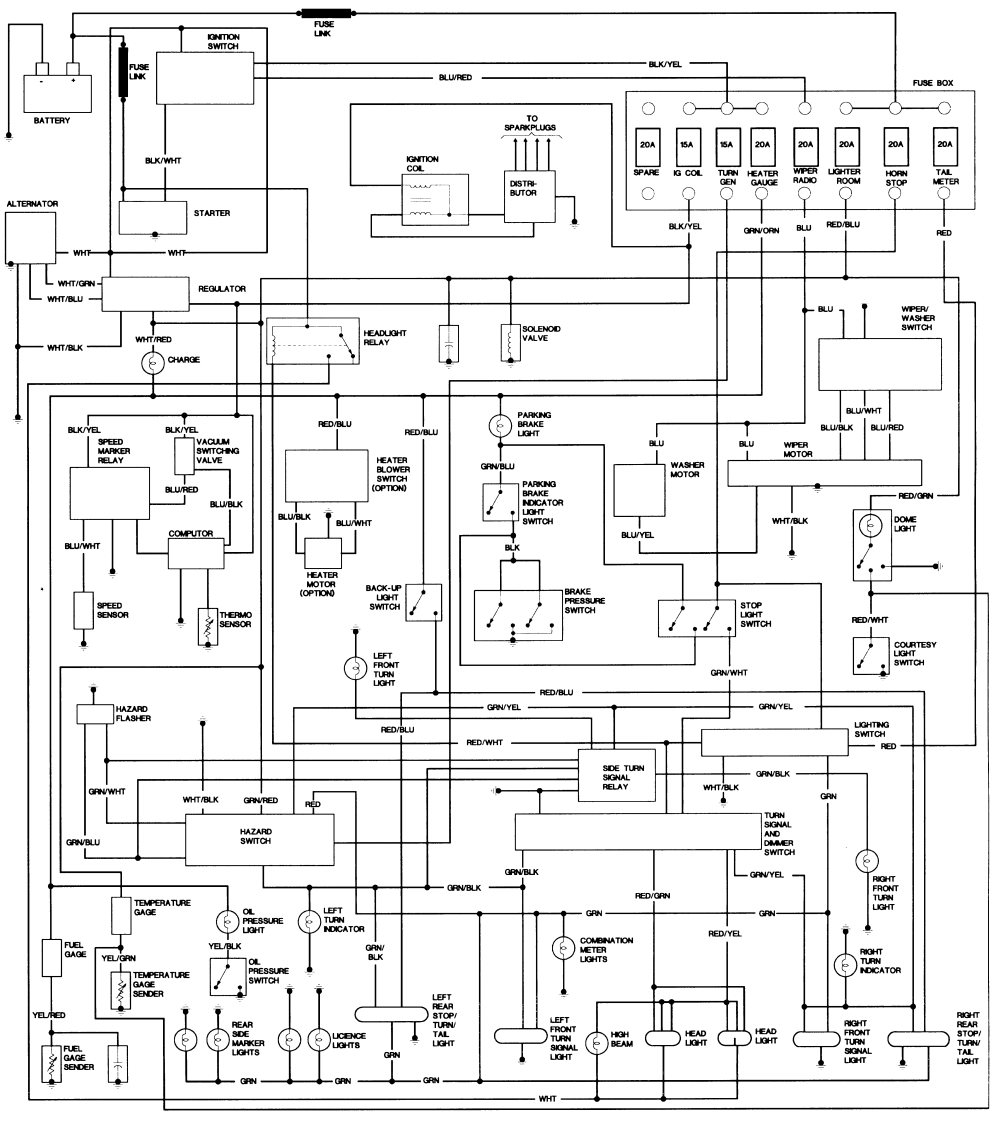

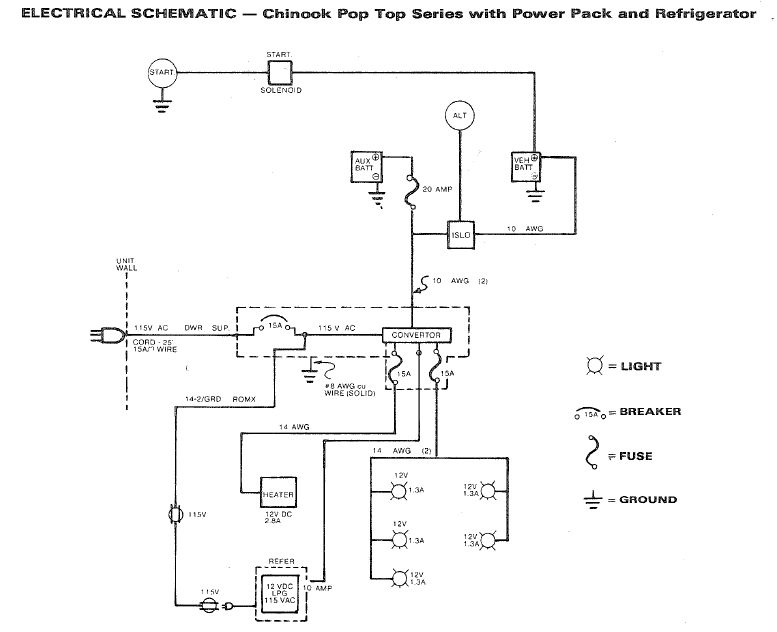

12V Chinook Wiring

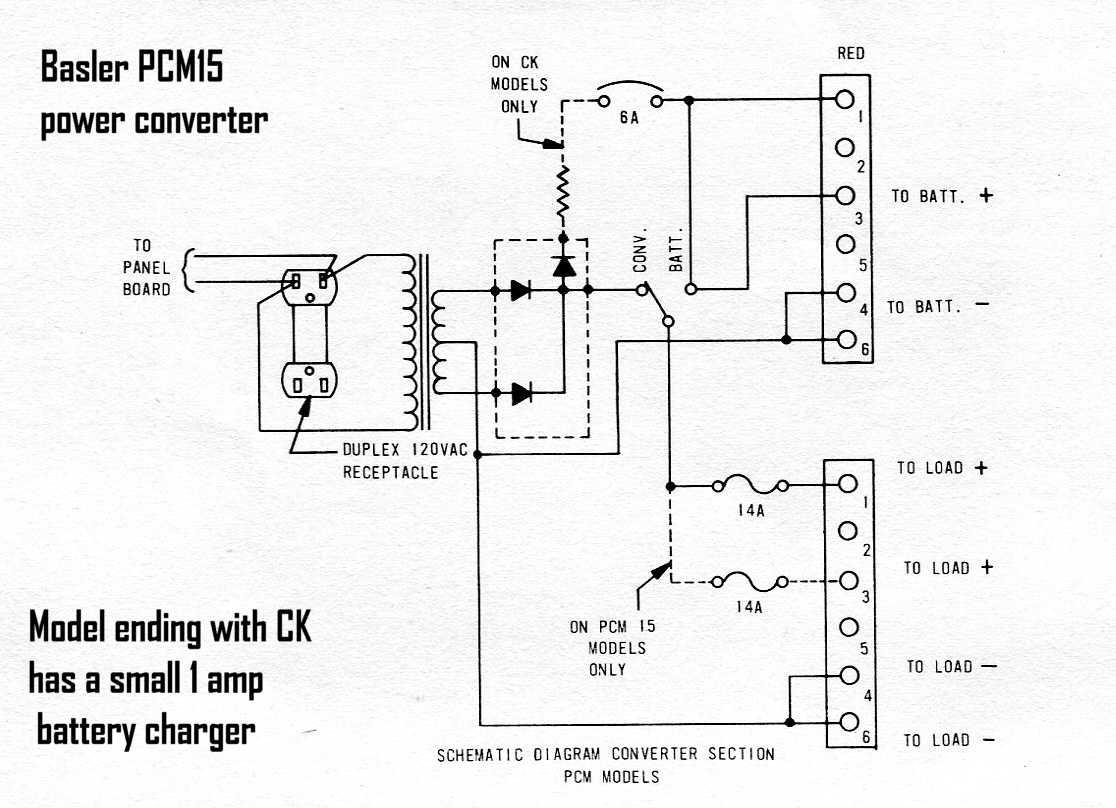

Stock Inverter Wiring

Ignition Wiring

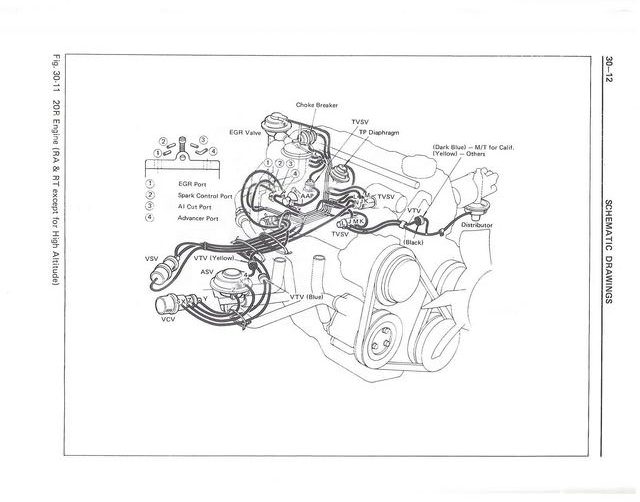

Vacuum Diagram

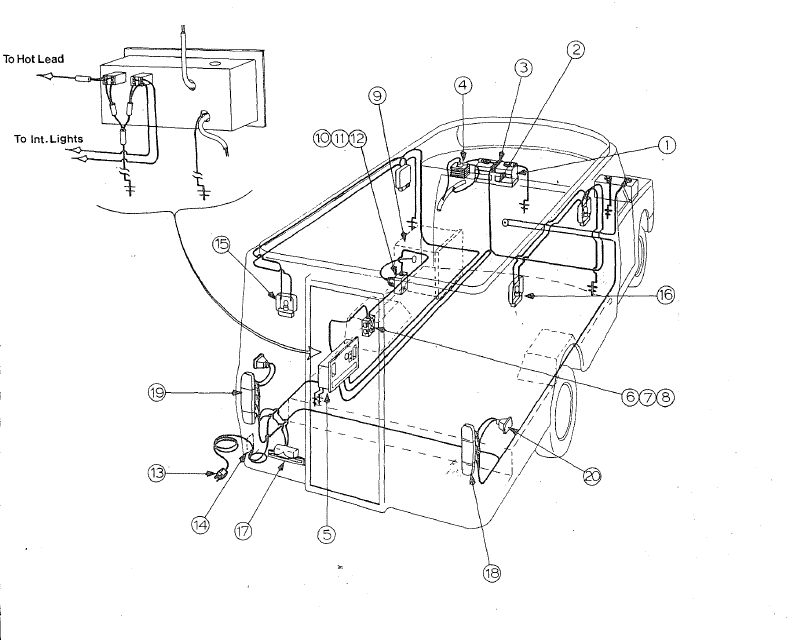

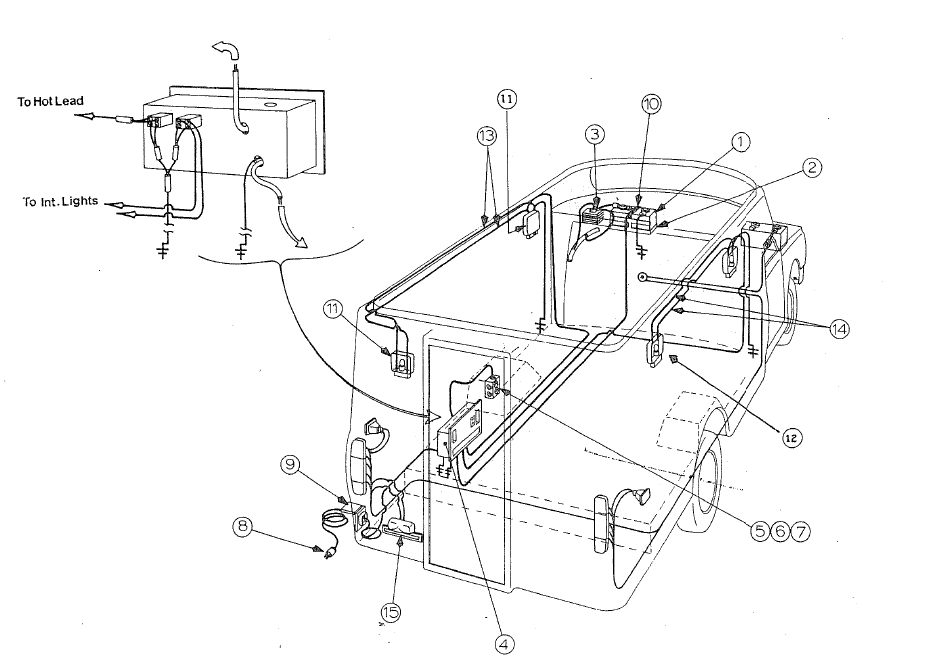

12V System Overview

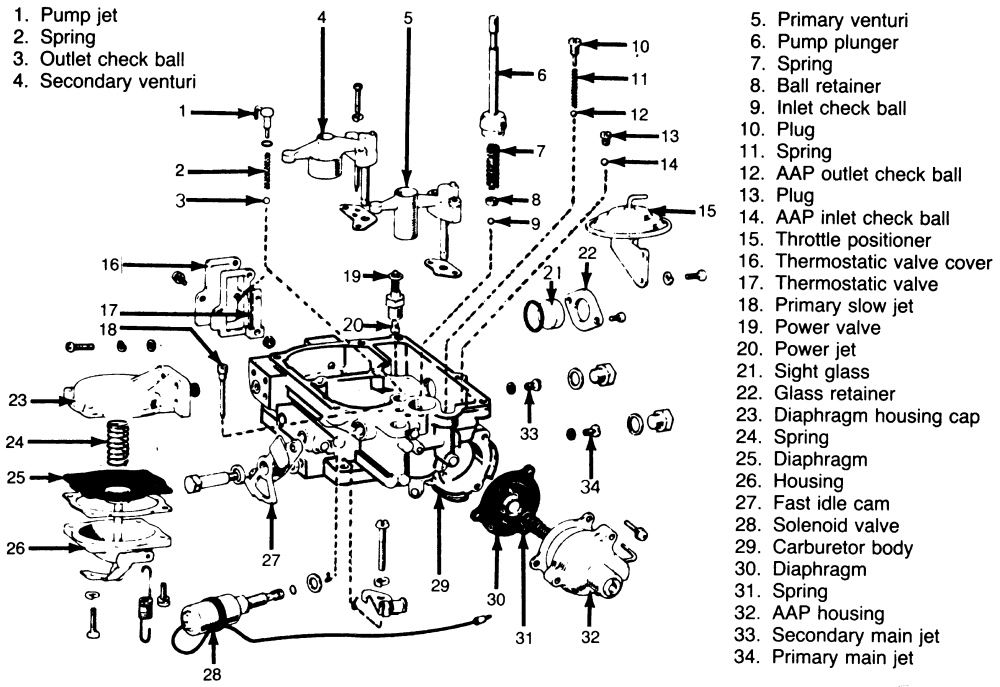

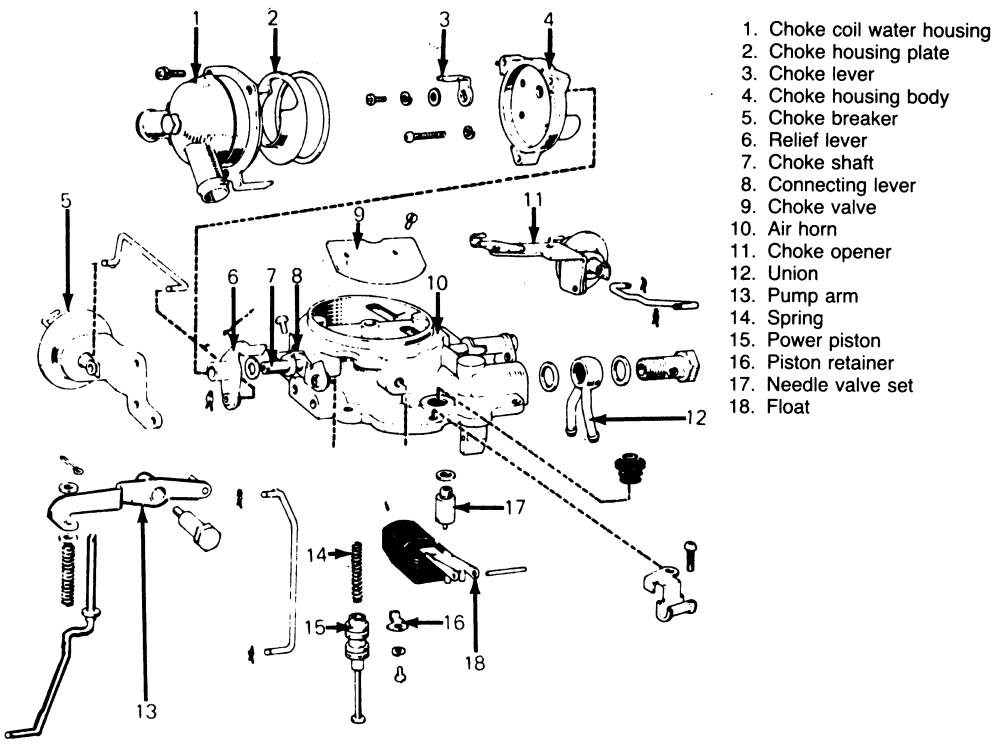

Carb Exploded

Carb Exploded

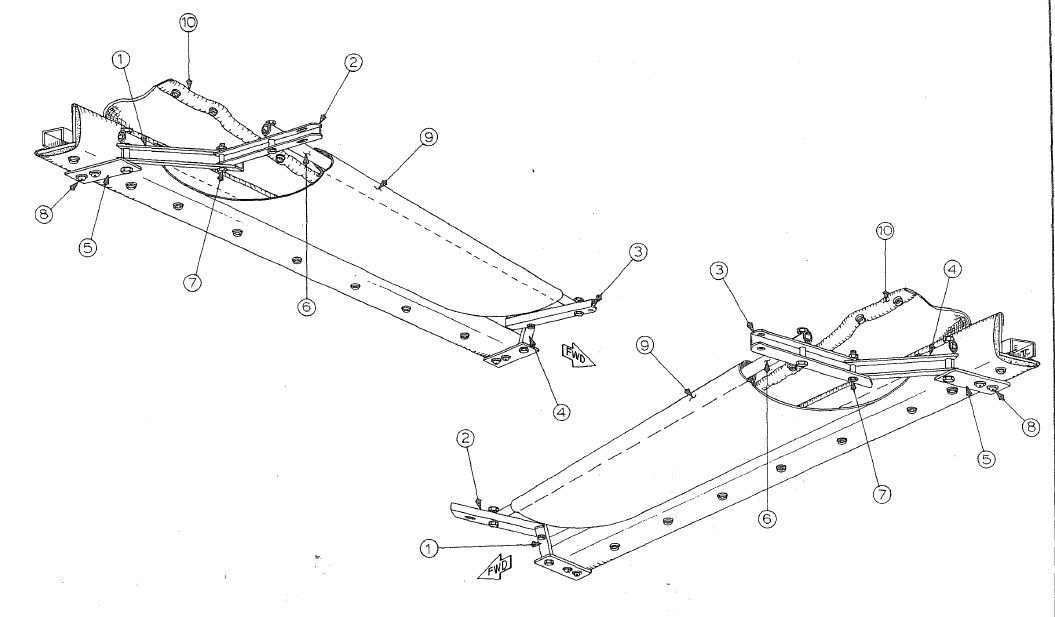

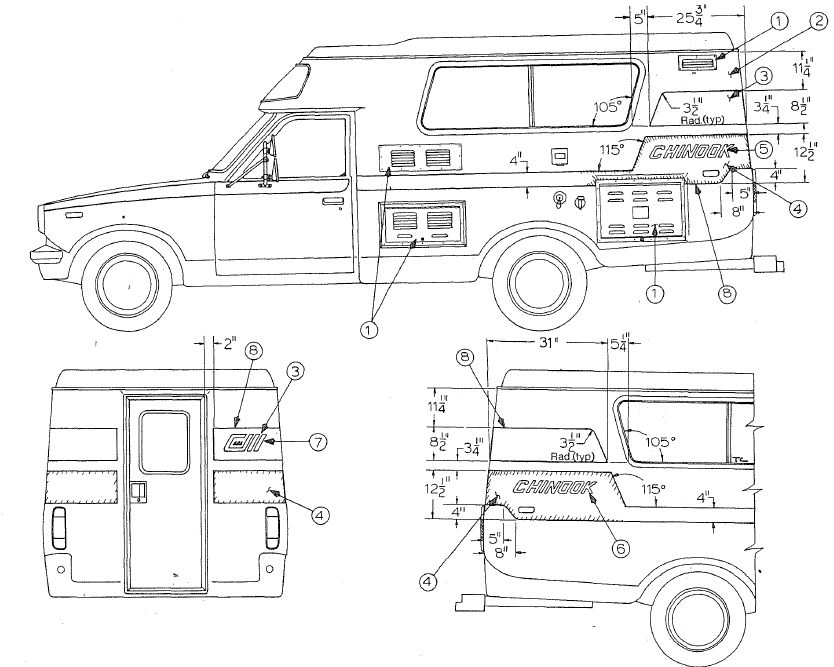

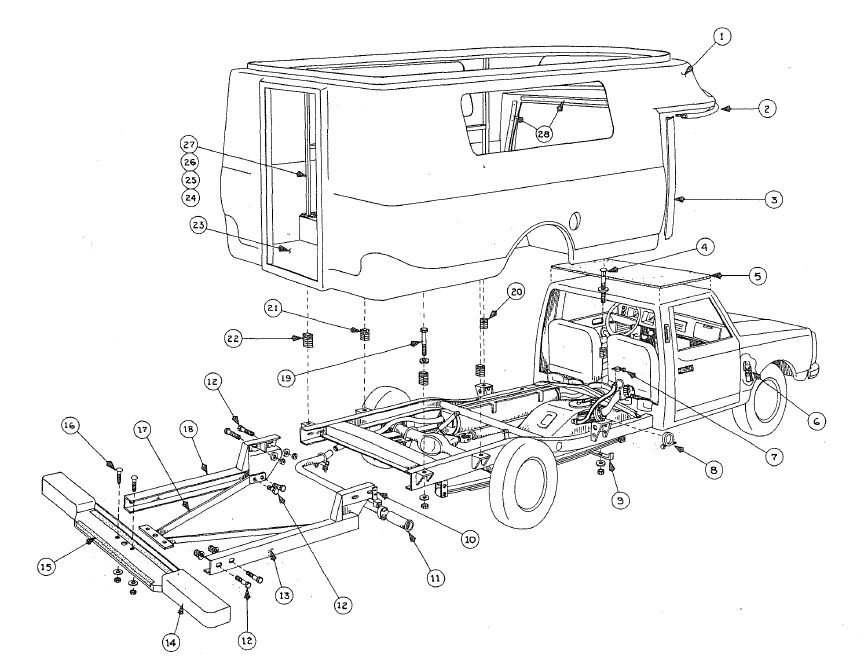

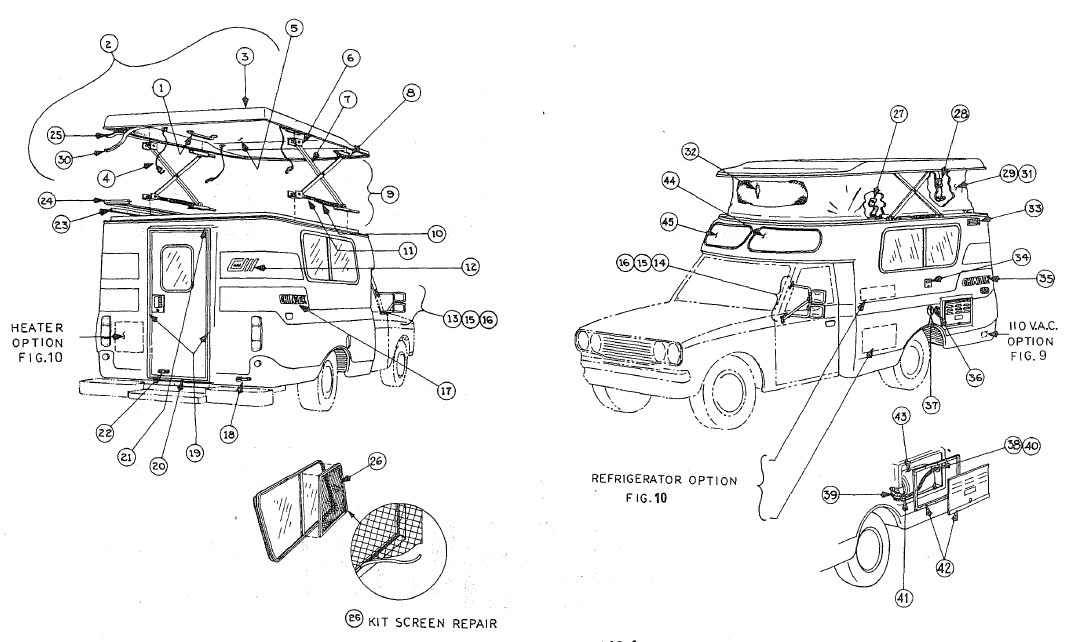

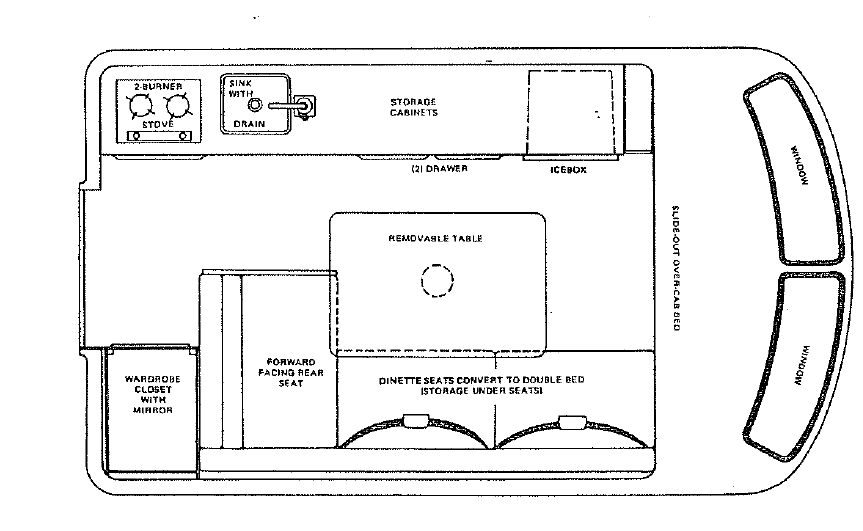

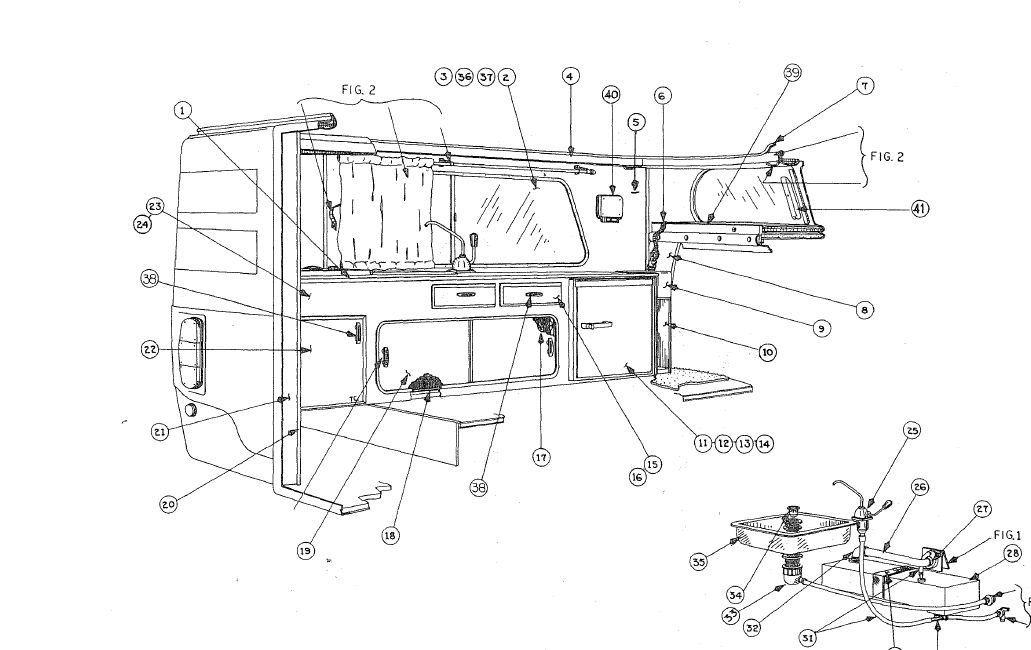

Frame / Body / Electrical Drawings:
